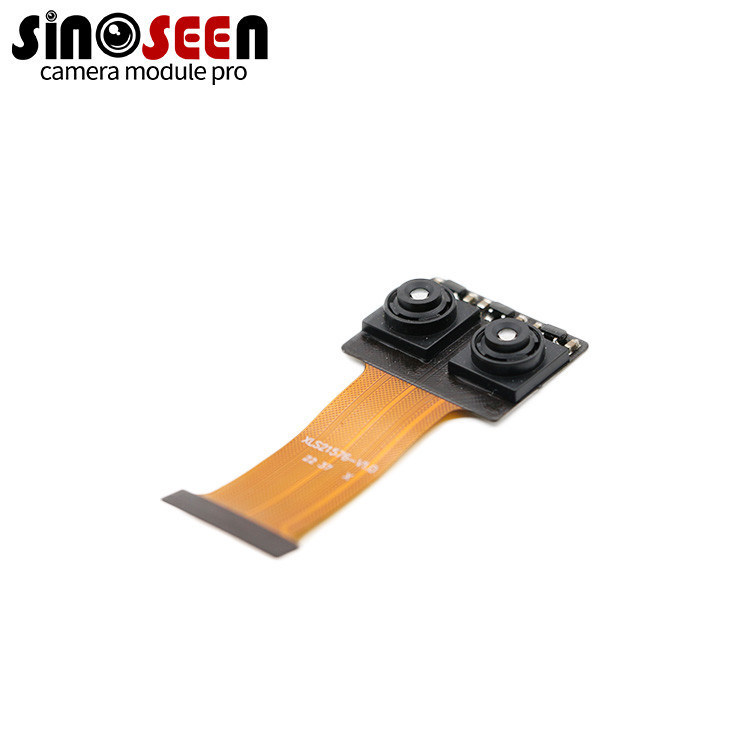

2MP Dual Lens MIPI Camera Module with IR850 and RGB Filters for Color-Accurate and Infrared Imaging
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь, Китай |
| Фирменное наименование: | Sinoseen |
| Сертификация: | RoHS |
| Номер модели: | SNS21576-V1.0 |
Оплата и доставка Условия:
| Количество мин заказа: | 3 |
|---|---|
| Цена: | 10-100USD、negotiable |
| Упаковывая детали: | Лоток+Антистатический пакет в картонной коробке. |
| Время доставки: | 2-3 недели |
| Условия оплаты: | Т/Т |
| Поставка способности: | 500000 штук/месяц |
|
Подробная информация |
|||
| Тип: | Модуль камеры 2 МП | Датчик: | Датчик SC2310 |
|---|---|---|---|
| Разрешение: | Х1920*В1080 | Размеры: | (настраиваемый) |
| Размер пикселя: | 3.0ум х3.0ум | Тип фокуса: | Фиксированный фокус |
| Интерфейс: | Мипи | Особенность: | HD |
| Выделить: | 2MP dual lens MIPI camera module,dual lens camera module with IR850,MIPI camera module for infrared imaging |
||
Характер продукции
The 2MP Dual Lens MIPI Camera Module combines two independent lenses, each equipped with a dedicated SC2310 sensor and optical filter. One lens utilizes an IR850 filter to capture infrared light, while the other employs an RGB filter to reproduce natural colors. This dual-filter configuration allows simultaneous imaging in visible and infrared spectrums for enhanced detail and color accuracy.
The IR850 filter detects infrared light invisible to the human eye, making it valuable for night vision, surveillance, and object detection. The RGB filter isolates red, green, and blue channels to ensure precise color balance and true-to-life reproduction. Together, they deliver comprehensive visual data suitable for both daytime color imaging and low-light IR capture.
With a 2MP (1920x1080) resolution and 3.0 μm pixel size, this module provides clear, high-quality output. The MIPI interface ensures fast data transmission and easy integration with embedded systems, SBCs, and AI vision platforms. Its AEC, AEB, and AGC functions ensure consistent image performance across changing lighting environments.
- Dual-lens configuration with separate IR850 and RGB filters
- 2MP SC2310 CMOS sensor delivers 1920*1080 resolution
- IR850 filter enables infrared and night vision imaging
- RGB filter ensures true and vivid color reproduction
- MIPI interface for fast, stable data transmission
| Model No | SNS21576-V1.0 |
|---|---|
| Sensor | SC2310 sensor |
| Pixel | 2 Mega Pixel |
| Most effective pixels | H1920*V1080 |
| Pixel Size | 3.0um x3.0um |
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TBDdB |
| Dynamic range | TBDdB |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power supply requirement | AVDD28: 2.7~3.3V(Typ.2.8V) DVDD18: 1.15~1.3V(Typ.1.2V) IOVDD: 1.7~3.0V(Typ.1.8V) |
| Audio frequency | Optional |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | 0~60℃ |
| Operating temperature | -20~80℃ |
China top 10 camera module manufacturer. We customize all kinds of USB/MIPI/DVP camera module as per your request.
