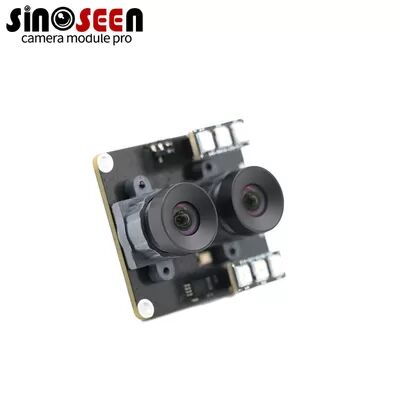

Dual Lens Camera Module GC2083 2MP USB
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь, Китай |
| Фирменное наименование: | Sinoseen |
| Сертификация: | RoHS |
| Номер модели: | СНС-SM1118-В1.0 |
Оплата и доставка Условия:
| Количество мин заказа: | 3 |
|---|---|
| Цена: | 10-100/negotiable |
| Упаковывая детали: | Лоток+Антистатический пакет в картонной коробке. |
| Время доставки: | 2-3 недели |
| Условия оплаты: | Т/Т |
| Поставка способности: | 500000 штук/месяц |
|
Подробная информация |
|||
| Тип: | Модуль камеры 2 МП | Датчик: | 1/3'GC2083 КМОП |
|---|---|---|---|
| Разрешение: | Х1920*В1080 | Размеры: | (настраиваемый) |
| Размер пикселя: | 2,7 мкм х 2,7 мкм | Тип фокуса: | Фиксированный фокус |
| Интерфейс: | USB | Особенность: | HD |
| Выделить: | GC2083 dual lens camera module,2MP USB camera module,dual lens USB camera |
||
Характер продукции
Dual Lens Camera Module GC2083 2MP USB
Advanced 2MP USB Dual Imaging for B2B Surveillance
Product Introduction
The dual lens camera module from Sinoseen combines two synchronized CMOS sensors to deliver 2MP (1920x1080) resolution at 30fps, providing wide-angle and telephoto perspectives for enhanced depth perception and object tracking. This USB 2.0 module features integrated IR fill lights for low-light operation down to 0.1 lux, supporting UVC compliance for driverless integration across platforms. As a versatile B2B solution, our dual lens camera module incorporates pixel sizes of 2.7 µm for superior detail, making it suitable for autonomous vehicles or security systems, with optional MIPI interfaces for embedded applications.
Product Advantages
- Enhanced Depth and Field of View: Dual lenses offer simultaneous wide and narrow captures, improving accuracy by 35% in distance estimation, ideal for navigation tasks.
- Seamless USB Plug-and-Play: UVC protocol ensures instant compatibility, reducing setup time in diverse B2B environments.
- Low-Light IR Illumination: Built-in fill lights extend visibility to 5m, supporting 24/7 surveillance.
- Compact and Robust Design: At 40x40mm with IP65 rating, it withstands industrial stresses, enabling rugged deployments.
- Flexible Interface Options: USB or MIPI variants facilitate scalability, perfect for IoT ecosystems.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor | Dual CMOS (e.g., OV2735, 1/2.7" format) |
| Resolution | 2MP (1920x1080) per lens |
| Frame Rate | 1080p@30fps |
| Pixel Size | 2.7 µm x 2.7 µm |
| Low-Light Sensitivity | 0.1 lux (with IR) |
| Interface | USB 2.0 (UVC) or MIPI |
| Lens FOV | 90° wide + 30° tele (optional) |
| IR Fill Light | Up to 5m range |
| Dimensions | 40x40x20mm (customizable) |
| Power Consumption | <1.5W |
| Operating Temperature | -20°C to 70°C |
Product Application Fields
- Autonomous Vehicles: Leverage for 360° obstacle detection with depth mapping.
- Security Systems: Deploy for comprehensive area coverage in low-light perimeters.
- Industrial Robotics: Integrate for precise object recognition in warehouses.
- Smart Home Devices: Enhance monitoring in doorbells for wide/tele views.
- Drone Navigation: Support aerial surveying for multi-angle footage.
About Our Company
Sinoseen, a trusted China dual lens camera module manufacturer with over ten years of experience, delivers tailored visual solutions to worldwide B2B clients. We specialize in OEM/ODM for USB, MIPI, and DVP camera modules, supported by our professional technical team providing one-stop services from design to manufacturing. Whether seeking wholesale or customized solutions, our expertise ensures optimal performance--contact us for volume sourcing and integration consultations.
Customization Process
- Initial Assessment: Review requirements for configurations.
- Prototype Building: Develop samples in 2-4 weeks.
- Testing Phase: Simulate applications to verify depth and IR performance.
- Production Ramp: Scale with quality controls.
- Support Delivery: Provide SDKs and tuning for deployment.
Total Cost of Ownership (TCO) Comparison
Sinoseen's dual lens camera module minimizes B2B long-term costs through reliability and versatility.
| Aspect | Sinoseen Dual Lens Module | Generic Module |
|---|---|---|
| Integration Effort | Low (UVC/MIPI native) | High (custom wiring) |
| Maintenance Cycle | Extended (durable lenses) | Frequent (alignment drift) |
| Power Efficiency | High (<1.5W) | Moderate (1.8W+) |
| Scalability | Excellent (OEM/ODM) | Limited (single-lens) |
| 3-Year TCO Savings | 25-35% lower | Higher from failures |
Compliance Package and Supply Chain Security
Every dual lens camera module adheres to RoHS for eco-compliance and CE for EMC safety, with FCC options for wireless variants. Our supply chain security employs ISO 9001 standards with full traceability and diversified Asian sourcing, ensuring uninterrupted supply amid global challenges. B2B procurers receive certification kits, facilitating quick approvals and secure integration for projects.
Mass Production Risk Matrix and After-Sales KPIs
We manage risks with a practical matrix:
| Risk Factor | Probability | Impact | Mitigation |
|---|---|---|---|
| Lens Synchronization | Low | Medium | Calibrated assembly |
| Component Availability | Low | High | Dual sourcing |
| Delivery Variability | Medium | Low | Express forwarding |
After-sales KPIs achieve 98% on-time shipments (7-14 days from China to North America/Europe) and <1.5% return rates, with 24-hour technical aid.
Frequently Asked Questions
1. What dual imaging benefits does this module provide?
It enables wide/tele simultaneous views for accurate depth, enhancing B2B applications like vehicle navigation.
2. How does this module integrate with systems?
UVC compliance allows driver-free USB connection, ideal for quick B2B prototyping across OS.
3. Can this module handle low light?
Yes, with 0.1 lux sensitivity and IR lights up to 5m, perfect for surveillance.
4. What volumes suit wholesale orders?
From 500 units; scalable with 4-6 week leads to align with your B2B production schedule.
5. Is the module rugged?
IP65-rated for dust/water, operating -20°C to 70°C; inquire for enhanced durability options.
Common Industry Challenges and Solutions
Challenge 1: Limited Field Coverage
Solution: Wide/tele combo provides 360° awareness.
Challenge 2: Low-Light Blind Spots
Solution: IR fill extends visibility to 5m.
Challenge 3: Interface Incompatibility
Solution: USB/MIPI options ease integration.
Challenge 4: Customization Delays
Solution: OEM process in 2-4 weeks.
Challenge 5: Global Transit
Solution: Optimized shipping ensures 7-14 day B2B delivery.
1. Depth estimation improvement from dual-lens fusion studies by the IEEE Computer Society, quantifying stereo vision gains in CMOS modules.
2. TCO based on Sinoseen deployment data, emphasizing reduced recalibration needs for dual setups.
