OV5648 MIPI Camera Module 5MP 90FPS for HD Video
Подробная информация о продукте:
| Place of Origin: | Shenzhen,China |
| Фирменное наименование: | Sinoseen |
| Сертификация: | RoHS |
| Model Number: | SNS51867-V1.0 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 3 |
|---|---|
| Цена: | обсуждаемый |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Подробная информация |
|||
| Type: | MIPI Camera Module | Sensor: | OV5648 1/4 inch |
|---|---|---|---|
| Resolution: | 5MP 2592*1944 | Dimensions: | Customizable |
| Frame Rate: | 90FPS | Lens FOV: | 125°(optional) |
| Interface: | MIPI | Feature: | low crosstalk and low noise |
| Выделить: | OV5648 MIPI camera module 5MP,MIPI camera module 90FPS HD video,5MP camera module with warranty |
||
Характер продукции
Sinoseen OV5648 CMOS Sensor MIPI Camera Module
HD Video and High Frame Rate Performance for Mobile Devices
Experience professional-grade imaging with the Sinoseen SNS51867-V1.0 Camera Module, featuring the OmniVision OV5648 CMOS sensor. This advanced module delivers 5MP HD images (2592x1944 resolution) at an ultra-high frame rate of 90 frames per second, eliminating choppy footage and lost details when capturing fast-moving objects.
Key Features
- OmniVision OV5648 CMOS sensor with 1/4" optical format
- 5MP resolution (2592*1944 pixels) with 1.4μm pixel size
- Ultra-high frame rate up to 90FPS
- MIPI interface for high-speed, stable data transmission
- OmniBSI+ technology for high sensitivity and low noise
- Fixed focus design for simplified operation
- Excellent performance in low-light environments
- Customizable dimensions to fit various device requirements
Technical Specifications
| Module | SNS51867-V1.0 |
|---|---|
| Sensor | OV5648 CMOS |
| Pixel | 5MP |
| Effective Pixels | 2592*1944 |
| Pixel Size | 1.4μm*1.4μm |
| Frame Rate | 90fps |
| Focus Type | Fixed focus |
| Output Interface | 2-lane MIPI |
| Output Formats | 8/10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| Max Image Transfer Rate | QSXGA:15fps, 1080p:30fps, 960p:45fps, 720p:60fps, VGA:90fps |
| Max S/N Ratio | 34dB |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |

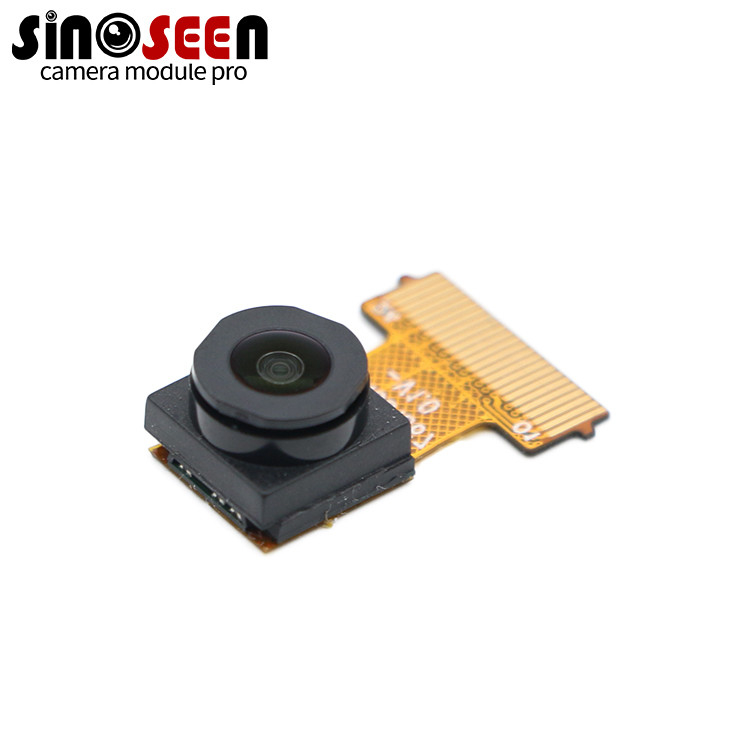

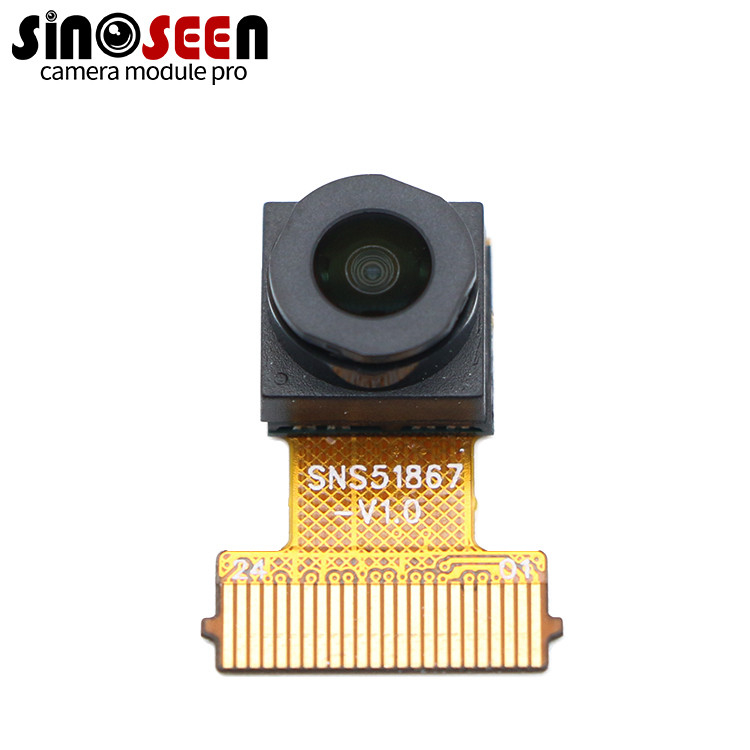

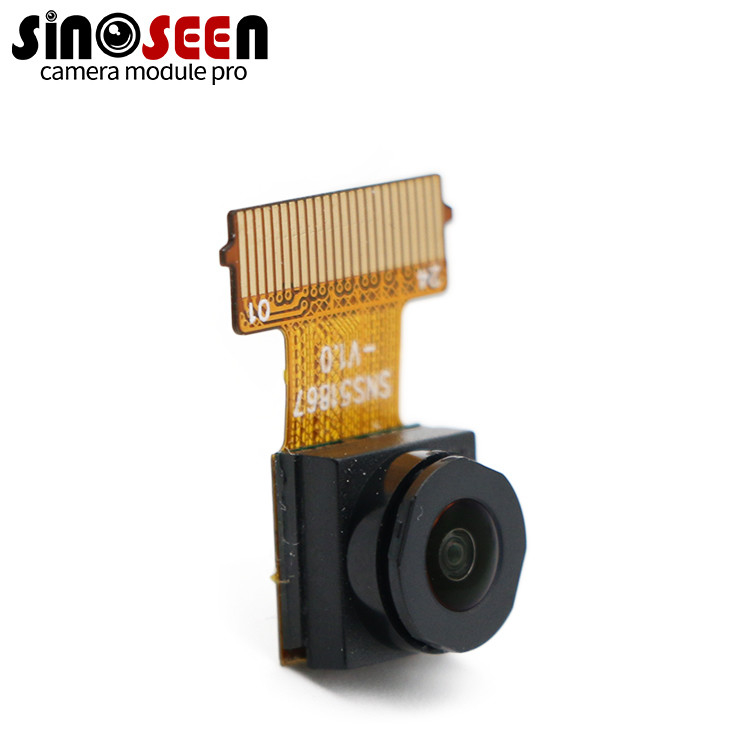

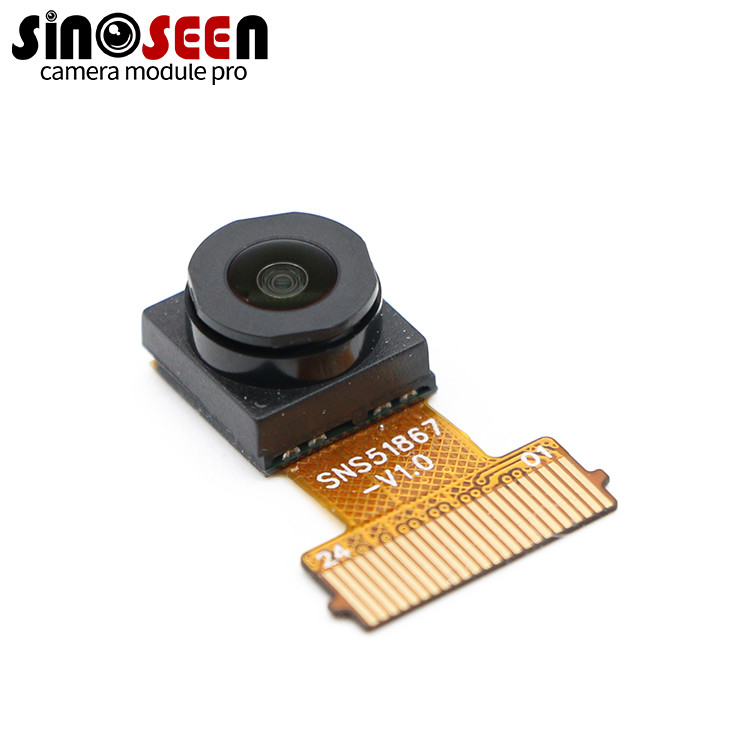

Product Images
Upgrade your mobile devices with the Sinoseen SNS51867-V1.0 Camera Module to achieve professional-grade imaging performance. Ideal for smartphones, tablets, and other mobile applications requiring high-quality video capture and fast frame rates.
