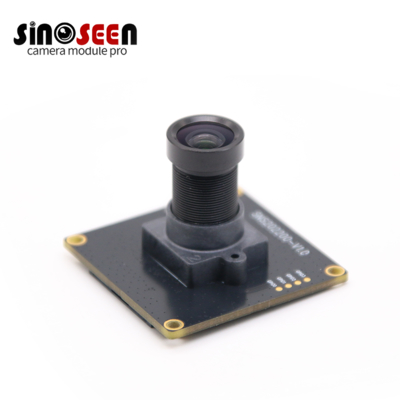

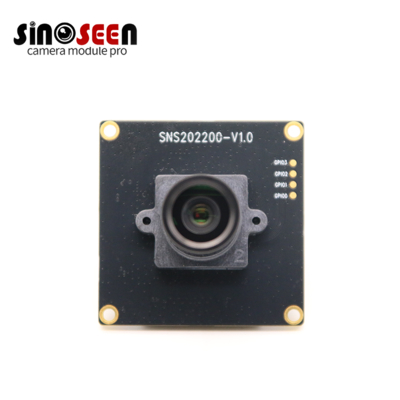

AR2020 20MP MIPI Camera Module for Industrial Machine Vision
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Sinoseen |
| Сертификация: | RoHS、ISO9001、CE |
| Номер модели: | SNS220C-V1.0 |
Оплата и доставка Условия:
| Количество мин заказа: | 5 |
|---|---|
| Цена: | 10-100USD or negotiable |
| Упаковывая детали: | Лоток+антистатическая сумка в коробке коробки |
| Время доставки: | 2-3 недели |
| Условия оплаты: | T/T. |
| Поставка способности: | 500000 штук/месяц |
|
Подробная информация |
|||
| Тип:: | MIPI Camera Module | Датчик: | AR2020 |
|---|---|---|---|
| Разрешение: | 5120 × 3840 | Размеры: | (совместим с 32 ммх32 мм) |
| Выделить: | 20MP MIPI camera module,industrial machine vision camera,MIPI camera module with warranty |
||
Характер продукции
Upgrade Your Imaging System with the AR2020 20MP MIPI Camera Module
Designed for consumption and back-side illumination, this high-performance camera module delivers exceptional image quality for demanding applications.
Product Attributes
| Type | MIPI Camera Module |
| Sensor | AR2020 |
| Resolution | 5120 × 3840 |
| Dimensions | Compatible with 32mm × 32mm |
| High Light | MIPI Camera Module, Machine Vision AR2020 Camera Module |
Product Details
The AR2020 is a 20MP CMOS sensor designed for capturing crisp, detailed images even in challenging lighting conditions. With up to 60FPS full-resolution imaging and 30FPS LI-HDR mode, it's perfect for surveillance cameras, industrial inspection, and machine vision systems. The built-in Smart ROI, subsampling, and x/y scaling let you focus on the most critical image areas. Thanks to back-side illumination and low power consumption, the AR2020 provides clean, low-noise images in compact designs.
Key Highlights
- 20MP full-resolution images at 60FPS
- Line-interleaved HDR mode at 30FPS
- Smart ROI and flexible scaling for focused imaging
- Low-noise BSI technology
- Works in industrial and surveillance environments
Technical Specifications
| Model | AR2020 |
| Sensor | 20MP BSI CMOS |
| Pixel Size | 1.4 μm |
| Optical Format | 1/1.8" |
| Active Pixels | 5120 × 3840 (5136 × 3856 incl. border) |
| Resolution & Frame Rate | 20MP 60FPS linear mode, 20MP 30FPS LI-HDR mode |
| Interface | 2×4-lane MIPI D-PHY (1×1, 1×2, 1×4, 2×4 lanes supported) |
| Control Interface | RC Fast-mode + 2-wire Serial Interface (up to 1 Mbps) |
| ADC Resolution | 10-bit |
| Analog Gain | 0-24 dB |
| Digital Gain | Up to 24 dB |
| Subsampling | Skipping (RGB, Mono), Binning (RGB, Mono), Summing (Mono) |
| Scaler | Adjustable x and y scaling up to 32×, 0.05% accuracy |
| Special Features | Smart ROI, mirroring & flip, on-chip PLL, temperature sensor |
| Chip Height | 27.1 ± 0.3 mm |
| Base Size | 17 × 17 ± 0.2 mm |
| IR Filter | 650 nm |
| Operating Temperature | -30°C to +85°C (junction) |
| Performance Spec Temp | 0°C to +60°C |
| Package | MPBGA-78 (13 × 10.5 mm) |
| Applications | Surveillance cameras, FA cameras, industrial cameras, machine vision |
| Power Supply | Analog 2.8V, VO 1.8V, Core/Digital 1.05V |
