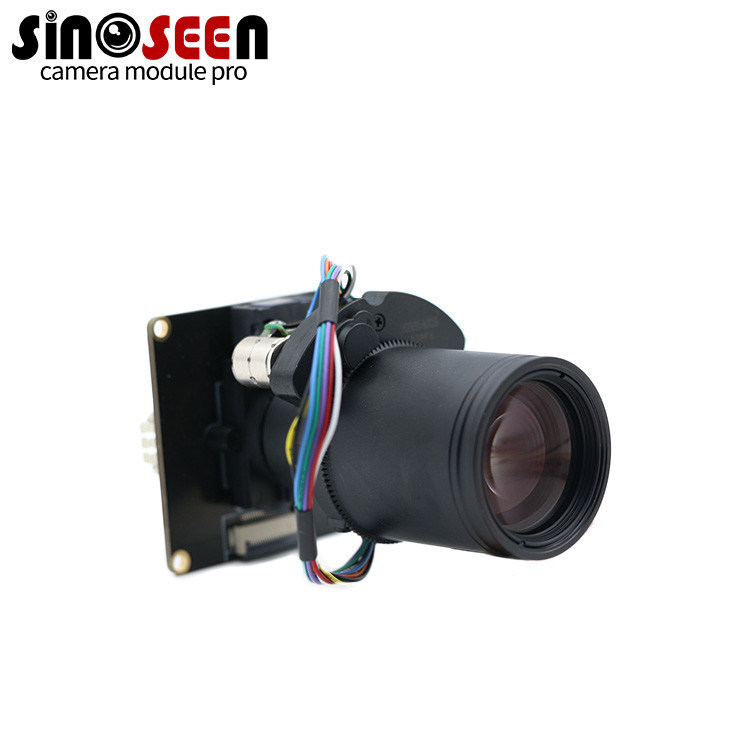

IMX586 48MP MIPI Camera Module with Quad Bayer Sensor and 6X Optical Zoom for Low-Light Performance
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь, Китай |
| Фирменное наименование: | Sinoseen |
| Сертификация: | RoHS |
| Номер модели: | SNS481828-V1.0 |
Оплата и доставка Условия:
| Количество мин заказа: | 3 |
|---|---|
| Цена: | 10-100USD、negotiable |
| Упаковывая детали: | Лоток+антистатическая сумка в коробке коробки |
| Время доставки: | 2-3 недели |
| Условия оплаты: | T/T. |
| Поставка способности: | 500000 штук/месяц |
|
Подробная информация |
|||
| Тип: | MIPI Camera Module | Датчик: | IMX586 |
|---|---|---|---|
| Разрешение: | 48MP 8000*6000 30fps | Размеры: | Настраиваемый |
| FOV объектива: | 90° (опционный) | Тип фокуса: | Оптическое зум |
| Интерфейс: | Мипи | Особенность: | Низкая производительность |
| Выделить: | 48MP MIPI camera module with Quad Bayer sensor,IMX586 camera module with 6X optical zoom,low-light MIPI camera module with warranty |
||
Характер продукции
The IMX586 48MP camera module integrates advanced Quad Bayer pixel technology for superior low-light imaging and noise reduction. By combining four small pixels into one large pixel, it significantly improves brightness and detail capture under challenging lighting conditions.
Equipped with a 6X optical zoom lens, this module achieves true optical magnification while maintaining edge-to-edge sharpness without digital degradation. Its ability to capture clear images at long distances makes it ideal for security systems, industrial inspection, and smart vision applications.
The module supports 8000*6000 resolution stills at 30fps and 1080P video at 60fps, utilizing the MIPI interface for reliable, high-speed image data transfer.
- 48MP Quad Bayer IMX586 sensor delivers detailed, noise-free imaging
- 6X optical zoom with precise optical element adjustment
- Enhanced low-light sensitivity with reduced image noise
- Full-resolution 30fps / 1080P 60fps performance
- MIPI output interface compatible with embedded and smart devices
| Module No | SNS481828-V1.0 |
|---|---|
| Pixel Size | 0.8μm * 0.8μm |
| Effective Pixels | 48MP (8000*6000 @30fps) |
| Video Output | Raw Bayer 10bit/8bit |
| Active Array Size Video Rate | Full resolution@30FPS, 1080P@60FPS |
| Sensor Type | Omnivision IMX586 |
| Lens View | FOV90° (optional), F/N (optional) |
| TV Distortion | <1% |
| Operating Voltage | AVDD: 3.0~3.6V, DOVDD: 1.7~3.6V, DVDD: 1.7~1.9V |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co., Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera modules according to your requirements
A: Please provide your specific requirements including application scenarios, resolution, size, and lens specifications. Our engineering team will assist in selecting the most suitable camera module.
A: After confirming all parameters, we will prepare technical drawings for your approval. Once drawings are confirmed, we will proceed with proofing.
A: We accept T/T bank transfer and PayPal payments.
A: USB camera modules typically require 2-3 weeks, while MIPI or DVP modules take 10-15 days.
A: After successful testing, we ship samples via DHL, FedEx, or UPS, with delivery typically completed within one week.
