USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | sinoseen |
| Номер модели: | SNS |
Оплата и доставка Условия:
| Количество мин заказа: | 5 |
|---|
|
Подробная информация |
|||
| Тип монтажа: | Все | Рабочий ток: | 120 мА~220 мА |
|---|---|---|---|
| Сжатие видео: | H.264 | Эффективные пиксели: | HD 648 (H) X488 (V) |
| Длина кабеля: | 1 м/1,5 м | Размер пикселя: | 3,4 мкм х 3,4 мкм |
| Датчик изображения: | 1/6,5 дюйма | Вид линзы: | Угол обзора 150° (опционально), П/С (опционально) |
| Рабочее напряжение: | DC5V | Интерфейс: | ПИТАНИЕ ШИНЫ USB 5P-1,25 мм |
| Измерение: | 25x25 мм | АЭК/AWB/AGC: | Поддерживается |
| Тип фокуса: | Автоматический фокус | Угол обзора: | 150 градусов |
| Тип подключения: | USB | ||
| Выделить: | USB auto focus camera module,HD wide angle camera module,150 degree COMS camera module |
||
Характер продукции

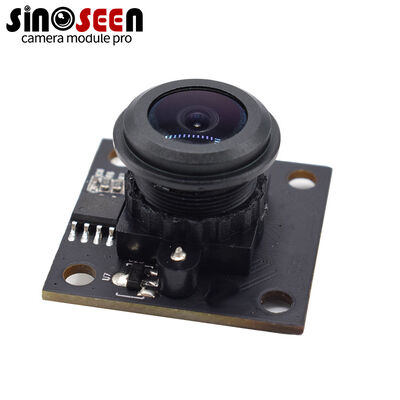

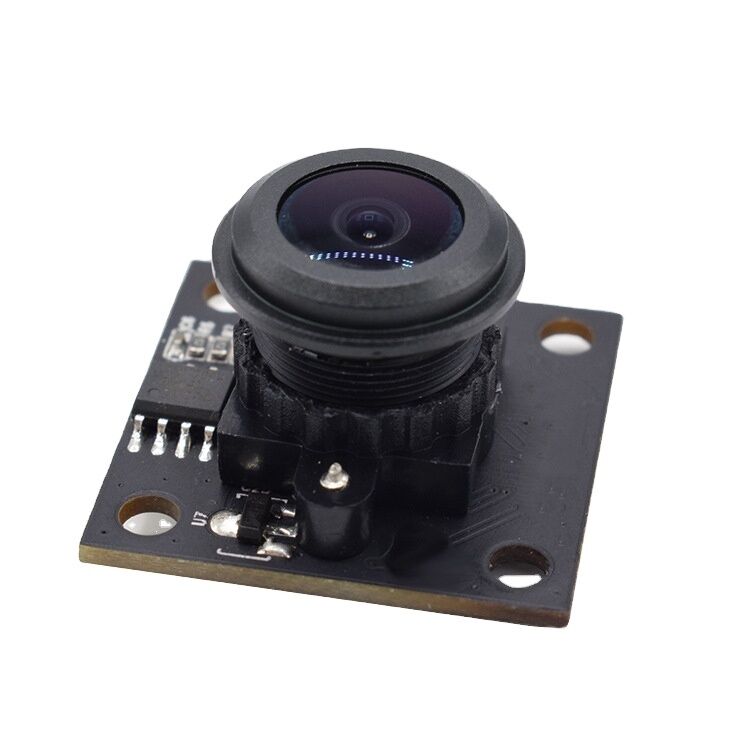

USB Auto Focus HD Camera Module with 150° Wide Angle
High-definition CMOS camera module featuring auto focus and ultra-wide 150-degree field of view, designed for industrial imaging applications.

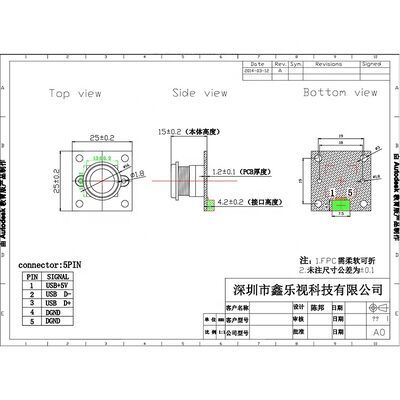

Technical Specifications
| Pixel Size | 3.4μm × 3.4μm |
| Effective Pixels | HD 648(H) × 488(V) |
| Image Sensor | 1/6.5" CMOS |
| AEC/AWB/AGC | Supported |
| Lens View | FOV 150° (Optional), F/N (Optional) |
| Interface | USB BUS POWER 5P-1.25mm |
| Operating Voltage | DC 5V |
| Working Current | 120mA ~ 220mA |
| Dimension | 25 × 25mm |
| Cable Length | 1m / 1.5m |
Product Images
Company Profile
Shenzhen Sinoseen Technology Co., Ltd was established in March 2009. For decades, Sinoseen has been dedicated to providing customers with various OEM/ODM customized CMOS image processing solutions from design and development, manufacturing, to after-sales one-stop service. We are confident to offer customers with the most competitive price and quality. At present our products involve USB camera modules, mobile phone camera modules, notebook camera modules, security cameras, car cameras and smart home camera products. Any product related with camera module, we can find the best solution for you.
Application Areas
- Imaging and vision solutions
- Machine vision and intelligent systems
- Future security and optical technology solutions
- Camera module customized solutions
- Internet of Things end-to-end solutions
- Iris recognition and face recognition technology
- VR high end camera solutions
- Smart home and intelligent hardware solutions
- Professional camera modules for small UAV
- Drone solutions and aerial filming
- Mobile phone camera modules and solutions
- Optronics and imaging technology solutions
- Infrared imagers for industry
- Embedded systems solutions
Customization Process
Our customization process begins with understanding your specific application requirements. We analyze factors including product structure size, image definition, frame rate, lens angle, lighting conditions, and functional targets to recommend the optimal DSP chip, sensor, and lens combination.
Customization Example
For person identification systems: In well-lit indoor environments, we recommend standard lenses and sensors. For challenging lighting conditions or backlight situations, we suggest WDR wide dynamic sensors with distortion correction. For high-security requirements, we provide WDR with black and white infrared binocular recognition cameras. Final parameter adjustments for color, white balance, and saturation are tailored to your specific environment.
Our Advantages
Certifications
Packing & Delivery
Frequently Asked Questions
