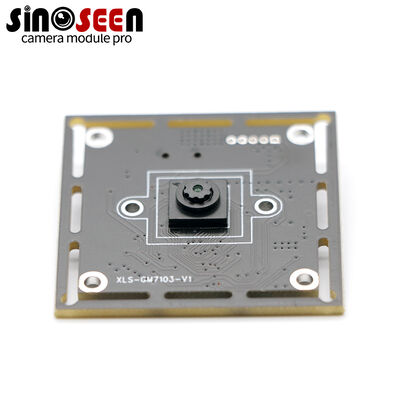

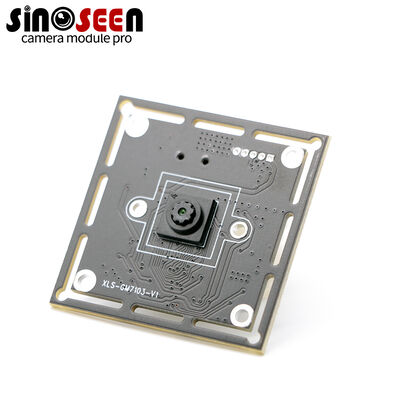

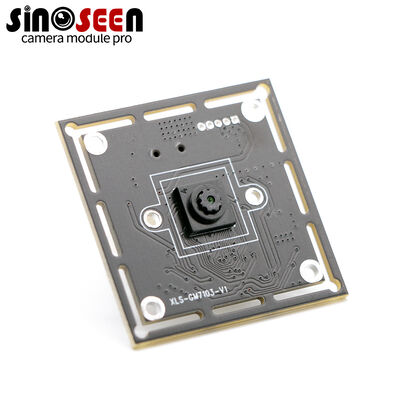

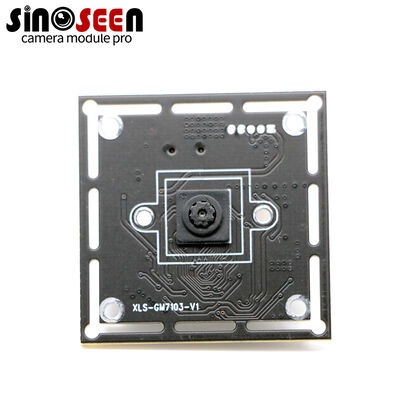

GC0308 sensor 0.3MP USB interface micro camera module
Подробная информация о продукте:
| Место происхождения: | Гуандун, Китай |
| Фирменное наименование: | Sinoseen |
Оплата и доставка Условия:
| Количество мин заказа: | 5 |
|---|---|
| Цена: | $15-20 |
|
Подробная информация |
|||
| Тип выхода: | DC5V | Рабочая температура: | 0-60℃ |
|---|---|---|---|
| Ток-выход (макс.): | 260 утра | Ток – пиковый выход: | < 500 мА |
| Напряжение-питание (макс.): | 5 В | Напряжение — выход: | 2.5В |
| Настоящий - утечка: | 500 мА | Тип входа: | округ Колумбия |
| Спецификация: | USB | Датчик изображения: | 1/6,5 дюйма GC0308 |
| Интерфейс: | USB2.0, USB | Температура хранения: | от -20°С до 70°С |
| Напряжение – пробой: | 12 В | Частота - выключение: | 50 Гц/60 Гц |
| Выходная мощность: | 50 Гц | ||
| Выделить: | GC0308 sensor USB camera module,0.3MP micro camera module,USB interface camera module |
||
Характер продукции
| Module No | SNS-GM7103M-V1 |
|---|---|
| Pixel Size | 3.4μm x 3.4μm |
| Effective Pixels | HD 648(H) x 488(V) |
| Video Output | YUV2 MJPG |
| Active Array Size Video Rate | 640x480 @30 fps, 320x240 @ 60fps |
| Image Sensor | 1/6.5" GC0308 |
| SNR max | TBD dB |
| Dynamic Range | TBD dB |
| OTG | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable Parameters | Brightness, Contrast, Color Saturation, Hue, Definition, Gamma, White Balance, Exposure |
| Lens View | FOV70° (optional), F/N (optional) |
| Interface | USB BUS POWER 5P-1.25mm |
| Operating Voltage | DC5V |
| Operating Current | MAX 120mA |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Cable Length | Default |
| Supported OS | WinXP/Vista/Win7/Win8/Win10, Linux with UVC (above linux-2.6.26), MAC-OS X 10.4.8 or later, Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co., Ltd was established in March 2009. For decades, Sinoseen has been dedicated to providing customers with various OEM/ODM customized CMOS image processing solutions from design and development, manufacturing, to after-sales one-stop service. We are confident to offer customers the most competitive price and quality.
Our products involve USB camera modules, mobile phone camera modules, notebook camera modules, security cameras, car cameras and smart home camera products. Any product related with camera modules, we can find the best solution for you.
- Imaging and vision solutions
- Machine vision and intelligent systems
- Future security and optical technology solutions
- Camera module customized solutions
- Internet of Things end-to-end solutions
- Iris recognition and face recognition technology
- VR and high-end camera solutions
- Smart home and intelligent hardware solutions
- Professional camera modules for small UAV
- Drone solutions and aerial filming
- Mobile phone camera modules and optronics solutions
- Infrared imagers for industry and embedded systems
According to the actual application scene and functional target, the camera needs to comprehensively consider product structure size, image definition, frame rate, lens angle, lighting scene and other factors to choose the appropriate DSP chip, SENSOR and lens.
This product is for customer testing DEMO. Please contact our customer service to inform us about your specific application requirements, functional targets, and any special requirements. We will help you choose the appropriate DPS + SENSOR + lens scheme based on cost targets and other comprehensive factors, then design the product PCBA according to structural requirements.
