5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
Подробная информация о продукте:
Место происхождения: | КИТАЙ |
Фирменное наименование: | Sinoseen |
Сертификация: | RoHS |
Номер модели: | SNS-GM1133-V1.0 |
Оплата и доставка Условия:
Количество мин заказа: | 5 |
---|---|
Цена: | 10-100USD、negotiable |
Упаковывая детали: | Лоток+антистатическая сумка в коробке коробки |
Время доставки: | 2-3 недели |
Условия оплаты: | T/T. |
Поставка способности: | 500000 штук/месяц |
Подробная информация |
|||
Тип датчика: | CMOS | Размер модуля: | Два слоя 38 мм х 38 мм |
---|---|---|---|
Аудио вход: | Канал аудио MIC вход | стандартный интерфейс: | Быстрый ход USB2.0 |
Размер пикселя: | 1.4µm x1.4µm | Кодированный формат: | H.265/H.264 |
Энергопотребление: | О 140mA | Расстояние объекта: | 6CM-200CM |
Метод вождения: | Водите свободно. | Номер f: | 2.2 |
Эксплуатационный ток: | 610mA ((VGA) | Максимальный круг изображения: | 4,8 мм |
Произведение искусства: | 8-слойный дизайн | Гарантия: | 10 лет |
СОВМЕСТИМОСТЬ: | Windows, Mac, Linux | ||
Выделить: | 5MP USB camera module for machine vision,VB1940 CMOS camera module with USB2.0,high-resolution USB camera module for imaging |
Характер продукции

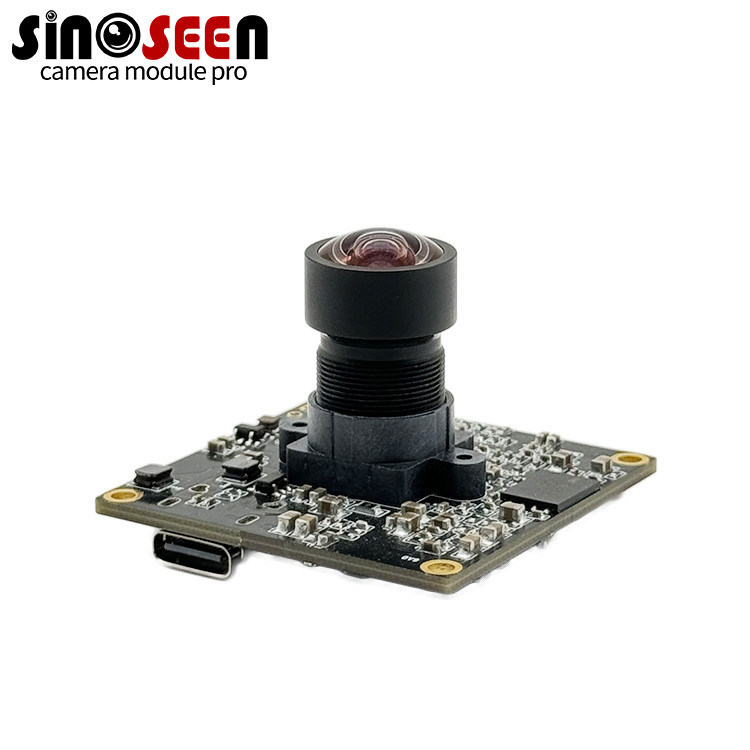

5MP VB1940 CMOS Camera Module with USB2.0 High-Resolution Imaging Solution for Machine Vision
The Sinoseen 5MP USB2.0 CMOS camera module is designed for developers and system integrators who demand crisp image quality and stable performance. Powered by the VB1940 1/2.8-inch CMOS sensor, it captures 2592 *1944 resolution images with accurate color and superior low-light sensitivity, ideal for professional imaging solutions.
With plug-and-play USB2.0 connectivity, it ensures smooth installation and stable transmission up to 480MB/s. The module supports MJPG and YUV output, and is compatible with Windows, Mac, Linux, and Android platforms. Its robust design makes it suitable for AI vision, industrial inspection, surveillance, and video conferencing applications.
Key Features
- 5MP VB1940 CMOS sensor for clear, sharp images
- USB2.0 high-speed plug-and-play connection
- Supports MJPG / YUV formats
- Accurate color and excellent low-light imaging
- Cross-platform compatibility: Windows, Linux, Mac, Android
- Ideal for AI vision, industrial automation, and video systems
Technical Specifications
Signal | SNS-GM1133-V1.0 | Remarks |
---|---|---|
Image Sensor Size | 1/2.8inch | |
Effective Pixels | 2592H*1944V | |
Pixel size | 2.0 um*2.0 um | |
Optical distortion | <0.45% | |
Image sensor Data output | Raw Bayer 10bits | |
Video output | MPJG/YUV | |
Maximum Frame Rates | 2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS |
MJPG |
Digital interface | Type-c USB2.0 | 1.5m cable |
Transfer rates | 480MB/S | |
Power requirements | 5V±5% | |
Storage temperature | -20℃ to 70℃ | |
Operating temperature | -10℃ to 60℃ | |
OS Support | Windows XP/Vista/7/8.1/10/Mac/Android/Linux 2.6.2 (include UVC) | |
Default lens | M12*P0.5 | LENS |
Lens Construction | 3G2P+650IR | |
F/NO aperture | 3.0±5% | |
EFL effective focal length | 4.18 mm±5% | |
FOV angle | 82°±3° | |
Focus method | Fixed focus | |
Shooting distance | 60cm-∞ |

Хотите узнать больше подробностей об этом продукте
